CARBON STEEL RTJ FACE FLANGES MANUFACTURER SUPPLIER IN INDIA

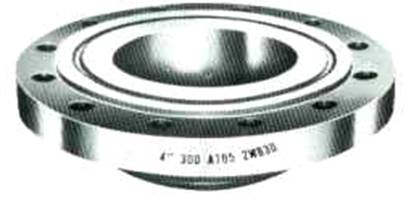

RTJ Flanges

Quality Forge & Fittings are Manufacturers, Supplier, and Exporters of RTJ Flanges in india. Our qualitative range of RTJ Flanges is exclusively designed for several piping applications of various industries. These are designed and developed in accordance with the international quality standards. RTJ Flanges that are precision engineered using the best quality raw material. We also customize these industrial flanges as per the requirements of the clients.

elbow-90

Dimensions of Ring-Joint Facings

elbow-90
  Nominal Pipe Size Groove Dimensions      Diameter of Raised Portion K
150 PSI 300 PSI 400 PSI 600 PSI 900 PSI 1500 PSI 2500 PSI Groove #  Pitch  Dia Depth  Width  Radius at Bottom 150 PSI 300  400 600 PSI 900 PSI 1500 PSI 2500 PSI Depth
P  E F R  E
... 1/2 ... 1/2 ... ... ... R11 1-11/32 7/32 9/32 1/32 ... 2 ... ... ... 7/32
... ... ... ... ... 1/2 ... 12 1-9/16 1/4 11/32 1/32 ... ... 2-3/8 2-3/8 ... 1/4
... 3/4 ... 3/4 ... ... 1/2 13 1-11/16 1/4 11/32 1/32 ... 2-1/2 ... ... 2-9/16 1/4
... ... ... ... ... 3/4 ... 14 1-3/4 1/4 11/32 1/32 ... ... 2-5/8 2-5/8 ... 1/4
1 ... ... ... ... ... ... 15 1-7/8 1/4 11/32 1/32 2-1/2 ... ... ... ... 1/4
... 1 ... 1 ... 1 3/4 16 2 1/4 11/32 1/32 ... 2-3/4 2-13/16 2-13/16 2-7/8 1/4
1-1/4 ... ... ... ... ... ... 17 2-1/4 1/4 11/32 1/32 2-7/8 ... ... ... ... 1/4
... 1-1/4 ... 1-1/4 ... 1-1/4 1 18 2-3/8 1/4 11/32 1/32 ... 3-1/8 3-3/16 3-3/16 3-1/4 1/4
1-1/2 ... ... ... ... ... ... 19 2-9/16 1/4 11/32 1/32 3-1/4 ... ... ... ... 1/4
... 1-1/2 ... 1-1/2 ... 1-1/2 ... 20 2-11/16 1/4 11/32 1/32 ... 3-9/16 3-5/8 3-5/8 ... 1/4
... ... ... ... ... ... 1-1/4 21 2-27/32 5/16 15/32 1/32 ... ... ... ... 4 5/16
2 ... ... ... ... ... ... 22 3-1/4 1/4 11/32 1/32 4 ... ... ... ... 1/4
... 2 ... 2 ... ... 1-1/2 23 3-1/4 5/16 15/32 1/32 ... 4-1/4 ... ... 4-1/2 5/16
... ... ... ... ... 2 ... 24 3-3/4 5/16 15/32 1/32 ... ... 4-7/8 4-7/8 ... 5/16
2-1/2 ... ... ... ... ... ... 25 4 1/4 11/32 1/32 4-3/4 ... ... ... ... 1/4
... 2-/12 ... 2-1/2 ... ... 2 26 4 5/16 15/32 1/32 ... 5 ... ... 5-1/4 5/16
... ... ... ... ... 2-1/2 ... 27 4-1/4 5/16 15/32 1/32 ... ... ... 5-3/8 ... 5/16
... ... ... ... ... ... 2-1/2 28 4-3/8 3/8 17/32 1/16 ... ... ... ... 5-7/8 3/8
3 ... ... ... ... ... ... 29 4-1/2 1/4 11/32 1/32 5-1/4 ... ... ... ... 1/4
... ... ... ... ... ... ... 30 4-5/8 5/16 15/32 1/32 ... ... ... ... ... 5/16
... 3 ... 3 3 ... ... 31 4-7/8 5/16 15/32 1/32 ... 5-3/4 6-1/8 ... ... 5/16
... ... ... ... ... ... 3 32 5 3/8 17/32 1/16 ... ... ... ... 6-5/8 3/8
3-1/2 ... ... ... ... ... ... 33 5-3/16 1/4 11/32 1/32 6-1/16 ... ... ... ... 1/4
... 3-1/2 ... 3-1/2 ... ... ... 34 5-3/16 5/16 15/32 1/32 ... 6-1/4 ... ... ... 5/16
... ... ... ... ... 3 ... 35 5-3/8 5/16 15/32 1/32 ... ... ... 6-5/8 ... 5/16
4 ... ... ... ... ... ... 36 5-7/8 1/4 11/32 1/32 6-3/4 ... ... ... ... 1/4
... 4 4 4 4 ... ... 37 5-7/8 5/16 15/32 1/32 ... 6-7/8 7-1/8 ... ... 5/16
... ... ... ... ... ... 4 38 6-3/16 7/16 21/32 1/16 ... ... ... ... 8 7/16
... ... ... ... ... 4 ... 39 6-3/8 5/16 15/32 1/32 ... ... ... 7-5/8 ... 5/16
5 ... ... ... ... ... ... 40 6-3/4 1/4 11/32 1/32 7-5/8 ... ... ... ... 1/4
... 5 5 5 5 ... ... 41 7-1/8 5/16 15/32 1/32 ... 8-1/4 8-1/2 ... ... 5/16
... ... ... ... ... ... 5 42 7-1/2 1/2 25/32 1/16 ... ... ... 9-1/2 1/2
6 ... ... ... ... ... ... 43 7-5/8 1/4 11/32 1/32 8-5/8 ... ... ... ... 1/4
... ... ... ... ... 5 ... 44 7-5/8 5/16 15/32 1/32 ... ... ... 9 ... 5/16
... 6 6 6 6 ... ... 45 8-5/16 5/16 15/32 1/32 ... 9-1/2 9-1/2 ... ... 5/16

Dimensions in inches. Raised face height matches depth of groove.

elbow-90

Dimensions of Ring-Joint Facings

Nominal Pipe Size Groove Dimensions Diameter of Raised Portion K
150 PSI 300 PSI 400 PSI 600 PSI 900 PSI 1500 PSI 2500 PSI Groove #  Pitch  Dia Depth  Width  Radius at Bottom 150 PSI 300  400 600 PSI 900 PSI 1500 PSI 2500 PSI Depth
P  E F R  E
... ... ... ... ... 6 ... R46 8-5/16 3/8 17/32 1/16 ... ... ... 9-3/4 ... 3/8
... ... ... ... ... ... 6 47 9 1/2 25/32 1/16 ... ... ... ... 11 1/2
8 ... ... ... ... ... ... 48 9-3/4 1/4 11/32 1/32 10-3/4 ... ... ... ... 1/4
... 8 8 8 8 ... ... 49 10-5/8 5/16 15/32 1/32 ... 11-7/8 12-1/8 ... ... 5/16
... ... ... ... ... 8 ... 50 10-5/8 7/16 21/32 1/16 ... ... ... 12-1/2 ... 7/16
... ... ... ... ... ... 8 51 11 9/16 29/32 1/16 ... ... ... ... 13-3/8 9/16
10 ... ... ... ... ... ... 52 12 1/4 11/32 1/32 13 ... ... ... ... 1/4
... 10 10 10 10 ... ... 53 12-3/4 5/16 15/32 1/32 ... 14 14-1/4 ... ... 5/16
... ... ... ... ... 10 ... 54 12-3/4 7/16 21/32 1/16 ... ... ... 14-5/8 ... 7/16
... ... ... ... ... ... 10 55 13-1/2 11/16 1-3/16 3/32 ... ... ... ... 16-3/4 11/16
12 ... ... ... ... ... ... 56 15 1/4 11/32 1/32 16 ... ... ... ... 1/4
... 12 12 12 12 ... ... 57 15 5/16 15/32 1/32 ... 16-1/4 16-1/2 ... ... 5/16
... ... ... ... ... 12 ... 58 15 9/16 29/32 1/16 ... ... ... 17-1/4 ... 9/16
14 ... ... ... ... ... ... 59 15-5/8 1/4 11/32 1/32 16-3/4 ... ... ... ... 1/4
... ... ... ... ... ... 12 60 16 11/16 1-5/16 3/32 ... ... ... ... 19-1/2 11/16
... 14 14 14 ... ... ... 61 16-1/2 5/16 15/32 1/32 ... 18 ... ... ... 5/16
... ... ... ... 14 ... ... 62 16-1/2 7/16 21/32 1/16 ... ... 18-3/8 ... ... 7/16
... ... ... ... ... 14 ... 63 16-1/2 5/8 1-1/16 3/32 ... ... ... 19-1/4 ... 5/8
16 ... ... ... ... ... ... 64 17-7/8 1/4 11/32 1/32 19 ... ... ... ... 1/4
... 16 16 16 ... ... ... 65 18-1/2 5/16 15/32 1/32 ... 20 ... ... ... 5/16
... ... ... ... 16 ... ... 66 18-1/2 7/16 21/32 1/16 ... ... 20-5/8 ... ... 7/16
... ... ... ... ... 16 ... 67 18-1/2 11/16 1-3/16 3/32 ... ... ... 21-1/2 ... 11/16
18 ... ... ... ... ... ... 68 20-3/8 1/4 11/32 1/32 21-1/2 ... ... ... ... 1/4
... 18 18 18 ... ... ... 69 21 5/16 15/32 1/32 ... 22-5/8 ... ... ... 5/16
... ... ... ... 18 ... ... 70 21 1/2 25/32 1/16 ... ... 23-3/8 ... ... 1/2
... ... ... ... ... 18 ... 71 21 11/16 1-3/16 3/32 ... ... ... 24-1/8 ... 11/16
20 ... 20 ... ... ... ... 72 22 1/4 11/33 1/32 23-1/2 ... ... ... ... 1/4
... 20 ... 20 ... ... ... 73 23 3/8 17/32 1/16 ... 25 ... ... ... 3/8
... ... ... ... 20 ... ... 74 23 1/2 25/32 1/16 ... ... 25-1/2 ... ... 1/2
... ... ... ... ... 20 ... 75 23 11/16 1-5/16 3/32 ... ... - 26-1/2 ... 11/16
24 ... ... ... ... ... ... 76 26-1/2 1/4 11/32 1/32 28 ... ... ... ... 1/4
... 24 24 24 ... ... ... 77 27-1/4 7/16 21/32 1/16 ... 29-1/2 ... ... ... 7/16
... ... ... ... 24 ... ... 78 27-1/4 5/8 1-1/16 3/32 ... ... 30-3/8 ... ... 5/8
... ... ... ... ... 24 ... 79 27-1/4 13/16 17/16 3/32 ... ... ... 31-1/4 ... 13/16

Dimensions in inches. Raised face height matches depth of groove.

Dimensional Tolerances B16.5 - 2003

Threaded, Socket-Welding, Slip-On, Lap Joint, and Blind Weld Neck
Outside Diameter (1) when the O.D. is 24" or less ±1/16" Outside Diameter (1) when the O.D. is 24" or less ±1/16"
when the O.D. is over 24"  ±1/8" when the O.D. is over 24"  ±1/8"
Inside Diameter Threaded within limites on boring gauge Inside Diameter = 10" ±1/32"
Socket-Welding, Slip-On and Lap-Joint = 10"+1/32", -0"   =12"+1/16",-0" 12" through 18" ±1/16"
=  20" +1/8", -1/16"
Outside Diameter of Hub (1) = 12" +3/32", -1/16"  Diameter of Contact Face  1/16" Raised Face ±1/32"
= 14" ±1/8" 1/4" Raised Face Tongue & Groove Male, Famale  ±1/64"
Diameter of Contact Face  1/16" Raised Face ±1/32"         Diameter of Hub at Base (1) when Hub Base is 24" or less +1/16"
1/4" Raised Face Tongue & Groove Male, Famale  ±1/64" when Hub Base is over 24" ±1/8"
Diameter of Counterbore Same as for Inside Diameter Diameter of Hub at Point of Welding NPS = 5" +3/32", -1/32"
NPS = 6" +5/32". -1/32"
Drilling Bolt Circle ±1/16" Drilling Bolt Circle ±1/16"
Bolt Hole Spacing ±1/32" Bolt Hole Spacing ±1/32"
Concentricity of Bolt Circle with Respect to Facing NPS = 2 1/2", 1/32" max    Concentricity of Bolt Circle with Respect to Facing NPS = 2 1/2" 1/32" max
NPS = 3", 1/16" max NPS = 3" 1/16" max
Thickness = 18" +1/8", -0" Thickness = 18" +1/8", -0"
= 20" +3/16",-0" = 20" +3/16",-0"
Length Through the Hub (1) = 18" +1/8", -1/32" Length Through the Hub NPS = 4" ±1/16"
5 = NPS = 10" +1/16", -1/8
=  20"  +3/16", -1/16" =  12" +1/8", -3/16

Welding Bevel Standards

for Wall Thickness "t" 3/16" to 3/4" incl.     for Wall Thickness "t" greater than 3/4"

elbow-90

Additional Information:

  • Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), Other
  • Port of Dispatch: Mumbai OR KALAMBOLI India
  • Packaging Details: Fitting are given marking, painted with black japan or black Board (Mat Finish) & will be packed in a bagging bag with stickers written with size, grade & quantity.

Quality forge and fitting is leading suppliers of Carbon Steel RTJ Flanges in INDIA.

Quality Forge and Fittings is India's most trusted Carbon Steel RTJ Flanges suppliers in India. Quality Forge and Fittings have maintained to make a name as Carbon Steel RTJ Flanges suppliers and manufacturers in INDIA. Quality Forge and Fittings is an ISO 9001:2008 certified company that has been in existence since 2003. Carbon Steel RTJ Flanges is a flange or forged ring that is designed to connect pipe or any other machinery designed to or requires to have an intermediate connecting point.

Quality Forge has a wide range of Carbon Steel Flanges

Carbon Steel Slip On Flanges In India, Carbon Steel Weld Neck Flanges In India, Carbon Steel Blind Flanges In India, Carbon Steel long Weld Neck Flanges In India, Carbon Steel Threaded Flanges In India, Carbon Steel Socket Weld Flanges In India, Carbon Steel Lap Joint Flanges In India, Carbon Steel Campanion Flanges In India, Carbon Steel Studding OutLet Flanges In India, Carbon Steel Flanges In India

Carbon Steel RTJ Flanges manufacturer supplier dealer in Mumbai

Our Carbon Steel RTJ Flanges contain prime quality materials. factory-made from quality steel meeting ASTM and/or AISI standards as a result of higher the standard, higher is that the toughness of the Carbon Steel RTJ Flanges. prime quality of steel content makes a Carbon Steel RTJ Flanges harder and will increase its hardness. Quality Forge and Fittings is specialized in manufacturer and suppliers of Carbon Steel RTJ Flanges in India. Quality Forge and Fittings may be a certified manufacturer and suppliers in India. Quality Forge and Fittings is wide common in India for its prime quality Carbon Steel RTJ Flanges product.

Our purchaser's satisfaction depends on a variety of things like quality, Toughness, Hardness, Carbon Content, Delivery Time and our Services for Carbon Steel RTJ Flanges. Quality Forge and Fittings may be a Indian suppliers of Carbon Steel RTJ Flanges in INDIA. Quality Forge is also a leading supplier, manufacturer and dealer of other flanges such as Stainless Steel Flanges, Alloy Flanges in INDIA. Quality Forge also is a market leader of other products such as ANSI B 16.47 Series A Flanges, ANSI B 16.47 Series B Flanges, ANSI B 16.5 forged Flanges, Carbon Steel Flange, Stainless Steel Flexible Hose Pipe, API 5L Pipe, Weld Neck Flanges, Slip-On Flanges, RTJ Flanges, Spectacle Blind Flanges, Carbon Steel Awwa Flanges, Carbon Steel blind Flanges and many more other products in INDIA.

Quality Forge and Fittings manufacturers and provides solely quality tested and difficult Carbon Steel RTJ Flanges. Carbon Steel RTJ Flanges at Quality Forge and Fittings bear several toughness and hardness check before provision it to our purchasers. we've over 97% happy purchasers.

QUALITY FORGE AND FITTING IS WORLD LEADING SUPPLIERS OF Carbon Steel RTJ Flanges.

Carbon Steel RTJ Flanges manufacturer supplier dealer in India

Product dependability and performance has created quality forge & fitting leading businessperson, manufactures and suppliers of Carbon Steel RTJ Flanges in India. Each month we tend to export Carbon Steel RTJ Flanges product to India port around sixty-five containers to completely different customers. Our prime quality of Carbon Steel RTJ Flanges, sensible client service, and in-house Carbon Steel RTJ Flanges processing capabilities have made us one of the emerging and leading supplier for Carbon Steel RTJ Flanges in INDIA. Our product Carbon Steel RTJ Flanges area unit exported frequently to over sixty-five countries. Over last twelve Years we tend to had equipped over 2500+ plenty of carbon Carbon Steel RTJ Flanges to India.

Orders at Quality forge and fitting area unit secured quick delivery of Carbon Steel RTJ Flanges in India. the most reason being we've a wonderful reposition and storage facilities for each finished and semi-finished merchandise. they're finished as per the pressing necessities of the shoppers.

Quality Forge has a wide range of Stainless Steel Flanges

Stainless Steel Slip On Flanges In India, Stainless Steel Weld Neck Flanges In India, Stainless Steel Blind Flanges In India, Stainless Steel long Weld Neck Flanges In India, Stainless Steel Threaded Flanges In India, Stainless Steel Socket Weld Flanges In India, Stainless Steel Lap Joint Flanges In India, Stainless Steel Campanion Flanges In India, Stainless Steel Studding OutLet Flanges In India, Stainless Steel Flanges In India

Orders at Quality forge and fitting are guaranteed fast delivery of Carbon Steel RTJ Flanges in India. The main reason being we have an excellent warehousing and storage facilities for both finished and semi-finished goods. They are made ready as per the urgent requirements of the customers.

Due to giving prime quality of Carbon Steel RTJ Flanges at lower costs with the simplest services, we've our sales representatives altogether the most important cities of India that has:
