Alternate Flange Facings

elbow-90

Lap Joint

graph-buttweld-90

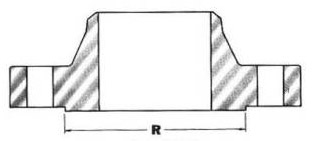

Raised Face

elbow-90

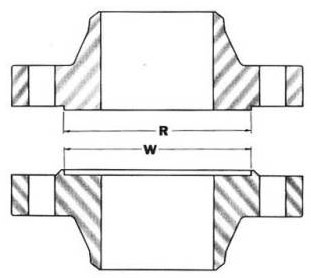

Large Male and Female

graph-buttweld-90

Large Tongue and Groove

elbow-90

Small Male and Female

graph-buttweld-90

Small Tongue and Groove

elbow-90

Small Male and Female (on end of pipe)

Nominal Size        (in.) RF, LJ, Large Male and Large Tongue Small Male      (3) Small Tongue ID of Large and Small Tongue Large Female and Large Groove Small Female (3) Small Groove ID of Large and Small Groove Raised Face 150 and 300 Pound Standards (2) RF, Large and Small Male and Tongue 400, 600, 900, 1500, & 2500 lb. Standards (2) Depth of Groove or Female
R  S  T U W X Y Z
 1/2 1.38 0.72 1.38 1 1.44 0.78 1.44 0.94 0.06 0.25 0.19
 3/4 1.69 0.94 1.69 1.31 1.75 1 1.75 1.25 0.06 0.25 0.19
1 2 1.19 1.88 1.5 2.06 1.25 1.94 1.44 0.06 0.25 0.19
1 1/4 2.5 1.5 2.25 1.88 2.56 1.56 2.31 1.81 0.06 0.25 0.19
1 1/2 2.88 1.75 2.5 2.12 2.94 1.81 2.56 2.06 0.06 0.25 0.19
2 3.62 2.25 3.25 2.88 3.69 2.31 3.31 2.81 0.06 0.25 0.19
2 1/2 4.12 2.69 3.75 3.38 4.19 2.75 3.81 3.31 0.06 0.25 0.19
3 5 3.31 4.62 4.25 5.06 3.38 4.69 4.19 0.06 0.25 0.19
3 1/2 5.5 3.81 5.12 4.75 5.56 3.88 5.19 4.69 0.06 0.25 0.19
4 6.19 4.31 5.69 5.19 6.25 4.38 5.75 5.12 0.06 0.25 0.19
5 7.31 5.38 6.81 6.31 7.38 5.44 6.88 6.25 0.06 0.25 0.19
6 8.5 6.38 8 7.5 8.56 6.44 8.06 7.44 0.06 0.25 0.19
8 10.62 8.38 10 9.38 10.69 8.44 10.06 9.31 0.06 0.25 0.19
10 12.75 10.5 12 11.25 12.81 10.56 12.06 11.19 0.06 0.25 0.19
12 15 12.5 14.25 13.5 15.06 12.56 14.31 13.44 0.06 0.25 0.19
14 16.25 13.75 15.5 14.75 16.31 13.81 15.56 14.69 0.06 0.25 0.19
16 18.5 15.75 17.62 16.75 18.56 15.81 17.69 16.69 0.06 0.25 0.19
18 21 17.75 20.12 19.25 21.06 17.81 20.19 19.19 0.06 0.25 0.19
20 23 19.75 22 21 23.06 19.81 22.06 20.94 0.06 0.25 0.19
24 27.25 23.75 26.25 25.25 27.31 23.81 26.31 25.19 0.06 0.25 0.19
