Class 250 Flanges [ 300 psi* ]

elbow-90

Weld Neck

graph-buttweld-90

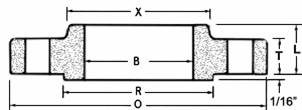

Slip On

Bore LTH Drilling Weights
Nom.  Size OD  Thickness OD of RF Dia at Base WN SO Weld Neck SO Bolt Circle Bolt Length Hole Dia # Holes Weld Neck Slip-on Blind
O R X B2 B L2 L
26 38.25 2.81 32.44 30.5 flanges, flange, industrial flanges, industrial flange, industrial pipe flanges, industrial fittings, industrial pipe, industrial carbon steel, industrial blind, industrial blinds, industrial, industrial waterworks, industrial stainless steel, industrial steel, industrial weld, industrial forgings, industrial orifice, industrial slip, industrial steel flange, industrial steel flanges, industrial titanium flange, industrial titanium flanges 26.25 5.81 4.75 34.5 10 1.88 28 534 531 916
28 40.75 2.94 34.94 33 28.25 5.94 5 37 10.25 1.88 28 629 637 1095
30 43 3 37.19 35.25 30.25 6 5 39.25 10.5 1.88 28 702 707 1236
32 45.25 3.12 39.44 37.5 32.25 6.12 5.12 41.5 10.75 1.88 28 793 801 1424
34 47.5 3.25 41.44 39.5 34.25 6.25 5.25 43.5 11.25 1.88 28 882 889 1649
36 50 3.38 43.69 41.5 36.25 6.38 5.38 46 12 2.13 32 969 970 1884
38 52.25 3.44 45.69 43.5 38.25 6.44 5.5 48 12 2.13 32 1057 1062 2094
40 54.25 3.56 47.94 45.75 40.25 6.56 5.5 50.25 12.25 2.13 36 1158 1172 2336
42 57 3.69 50.44 47.75 42.25 6.94 5.62 52.75 12.5 2.125 36 1318 1288 2673
44 59.25 3.75 52.69 49.75 44.25 7 5.75 55 12.75 2.13 36 1423 1397 2935
46 61.5 3.88 54.94 51.75 46.25 7.12 5.88 57.25 13 2.13 40 1536 1510 3272
48 65 4 58.44 54 48.25 7.25 6 60.75 13.25 2.13 40 1824 1797 3768

Dimensions are in inches. Weights are in pounds.

Notes: (a) - *AWWA Pressure rating at atmospheric temperature is 300 psi. These flanges have the same OD and drilling as ANSI/ASME B16.1 class 250 cast iron pipe and flanged fittings.
