ANSI B16.5 Class 600 Forged Flanges

elbow-90

Weld Neck Forged Flange

graph-buttweld-90

Threaded Forged Flange

elbow-90

Lap Joint Forged Flange

graph-buttweld-90

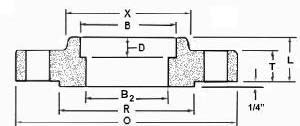

Socket Weld Forged Flange

elbow-90

Blind Forged Flange

graph-buttweld-90

Slip On Forged Flange

Nom. Pipe Size O T R X #/Dia of Holesa Bolt Circle Dia B B2b B3 H L L2 L3c r C D Thr
½ 3.75 0.56 1.38 1.5 4-0.63 2.62 0.88     flanges, flange, industrial flanges, industrial flange, industrial pipe flanges, industrial fittings, industrial pipe, industrial carbon steel, industrial blind, industrial blinds, industrial, industrial waterworks, industrial stainless steel, industrial steel, industrial weld, industrial forgings, industrial orifice, industrial slip, industrial steel flange, industrial steel flanges, industrial titanium flange, industrial titanium flanges 0.9 0.84 0.88 2.06 0.88 0.12 0.93 0.38 0.62
¾ 4.62 0.62 1.69 1.88 4-0.75 3.25 1.09 1.11 1.05 1 2.25 1 0.12 1.14 0.44 0.62
1 4.88 0.69 2 2.12 4-0.75 3.5 1.36 1.38 1.32 1.06 2.44 1.06 0.12 1.41 0.5 0.69
1¼ 5.25 0.81 2.5 2.5 4-0.75 3.88 1.7 1.72 1.66 1.12 2.62 1.12 0.19 1.75 0.56 0.81
1½ 6.12 0.88 2.88 2.75 4-0.88 4.5 1.95 1.97 1.9 1.25 2.75 1.25 0.25 1.99 0.62 0.88
2 6.5 1 3.62 3.31 8-0.75 5 2.44 2.46 2.38 1.44 2.88 1.44 0.31 2.5 0.69 1.12
2½ 7.5 1.12 4.12 3.94 8-0.88 5.88 2.94 2.97 2.88 1.62 3.12 1.62 0.31 3 0.75 1.25
3 8.25 1.25 5 4.62 8-0.88 6.62 3.57 3.6 3.5 1.81 3.25 1.81 0.38 3.63 0.81 1.38
3½ 9 1.38 5.5 5.25 8-1.00 7.25 4.07 4.1 4 1.94 3.38 1.94 0.38 4.13 ... 1.56
4 10.75 1.5 6.19 6 8-1.00 8.5 4.57 4.6 4.5 2.12 4 2.12 0.44 4.63 ... 1.62
5 13 1.75 7.31 7.44 8-1.12 10.5 5.66 5.69 5.56 2.38 4.5 2.38 0.44 5.69 ... 1.88
6 14 1.88 8.5 8.75 12-1.12 11.5 6.72 6.75 6.63 2.62 4.62 2.62 0.5 6.75 ... 2
8 16.5 2.19 10.62 10.75 12-1.25 13.75 8.72 8.75 8.63 3 5.25 3 0.5 8.75 ... 2.25
10 20 2.5 12.75 13.5 16-1.38 17 10.88 10.92 10.75 3.38 6 4.38 0.5 10.88 ... 2.56
12 22 2.62 15 15.75 20-1.38 19.25 12.88 12.92 12.75 3.62 6.12 4.62 0.5 12.94 ... 2.75
14 23.75 2.75 16.25 17 20-1.50 20.75 14.14 14.18 14 3.69 6.5 5 0.5 14.19 ... 2.88
16 27 3 18.5 19.5 20-1.63 23.75 16.16 16.19 16 4.19 7 5.5 0.5 16.19 ... 3.06
18 29.25 3.25 21 21.5 20-1.75 25.75 18.18 18.2 18 4.62 7.25 6 0.5 18.19 ... 3.12
20 32 3.5 23 24 24-1.75 28.5 20.2 20.25 20 5 7.5 6.5 0.5 20.19 ... 3.25
22 34.25 3.75 25.25 26.25 24-1.75 30.63 22.22 22.25 22 5.25 7.75 6.88 0.5 ... ... --
24 37 4 27.25 28.25 24-2.00 33 24.25 24.25 24 5.5 8 7.25 0.5 24.19 ... 3.62

Dimensions are in inches.

(a)- Bolt hole diameter 1/8 in. larger than bolt diameter. (b)- Standard bore dimensions provided. See bore chart for other wall thicknesses. (c)- This dimension is commonly associated with "true" lap joints. Industry standard is to make to the slip on length through the hub.
