ANSI B16.5 Class 300 Forged Flanges

elbow-90

Weld Neck Forged Flange

graph-buttweld-90

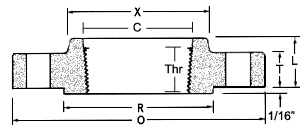

Threaded Forged Flange

elbow-90

Lap Joint Forged Flange

graph-buttweld-90

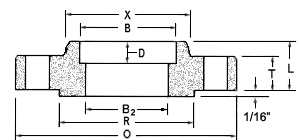

Socket Weld Forged Flange

elbow-90

Blind Forged Flange

graph-buttweld-90

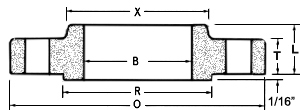

Slip On Forged Flange

Nom. Pipe Size O T TJ R X #/Dia of Holesa Bolt Circle Dia B B2b B3 H L L2 L3c r C D Thr
½ 3.75 0.50 0.56 1.38 1.50 4-0.63 2.62 0.88 0.62 0.90 0.84 0.81 2.00 0.88 0.12 0.93 0.38 0.62
¾ 4.62 0.56 0.62 1.69 1.88 4-0.75 3.25 1.09 0.82 1.11 1.05 0.94 2.19 1.00 0.12 1.14 0.44 0.62
1 4.88 0.62 0.69 2.00 2.12 4-0.75 3.50 1.36 1.05 1.38 1.32 1.00 2.38 1.06 0.12 1.41 0.50 0.69
5.25 0.69 0.75 2.50 2.50 4-0.75 3.88 1.70 1.38 1.72 1.66 1.00 2.50 1.06 0.19 1.75 0.56 0.81
6.12 0.75 0.81 2.88 2.75 4-0.88 4.50 1.95 1.61 1.97 1.90 1.13 2.63 1.19 0.25 1.98 0.62 0.88
2 6.50 0.81 0.88 3.62 3.31 8-0.75 5.00 2.44 2.07 2.46 2.38 1.25 2.69 1.31 0.31 2.50 0.69 1.12
7.50 0.94 1.00 4.12 3.94 8-0.88 5.88 2.94 2.47 2.97 2.88 1.44 2.94 1.50 0.31 3.00 0.75 1.25
3 8.25 1.06 1.12 5.00 4.62 8-0.88 6.62 3.57 3.07 3.60 3.50 1.63 3.06 1.69 0.38 3.63 0.81 1.25
9.00 1.12 1.19 5.50 5.25 8-0.88 7.25 4.07 3.55 4.10 4.00 1.69 3.13 1.75 0.38 4.13 ... 1.44
4 10.00 1.19 1.25 6.19 5.75 8-0.88 7.88 4.57 4.03 4.60 4.50 1.82 3.32 1.88 0.44 4.63 ... 1.44
5 11.00 1.31 1.38 7.31 7.00 8-0.88 9.25 5.66 5.05 5.69 5.56 1.94 3.82 2.00 0.44 5.69 ... 1.69
6 12.50 1.38 1.44 8.50 8.12 12-0.88 10.62 6.72 6.07 6.75 6.63 2.00 3.82 2.06 0.50 6.75 ... 1.81
8 15.00 1.56 1.62 10.62 10.25 12-1.00 13.00 8.72 7.98 8.75 8.63 2.38 4.32 2.44 0.50 8.75 ... 2.00
10 17.50 1.81 1.88 12.75 12.62 16-1.12 15.25 10.88 10.02 10.92 10.75 2.56 4.56 3.75 0.50 10.88 ... 2.19
12 20.50 1.94 2.00 15.00 14.75 16-1.25 17.75 12.88 12.00 12.92 12.75 2.82 5.06 4.00 0.50 12.94 ... 2.38
14 23.00 2.06 2.12 16.25 16.75 20-1.25 20.25 14.14 13.25 14.18 14.00 2.94 5.56 4.38 0.50 14.19 ... 2.50
16 25.50 2.19 2.25 18.50 19.00 20-1.38 22.50 16.16 15.25 16.19 16.00 3.19 5.69 4.75 0.50 16.19 ... 2.69
18 28.00 2.31 2.38 21.00 21.00 24-1.38 24.75 18.18 17.25 18.20 18.00 3.44 6.19 5.12 0.50 18.19 ... 2.75
20 30.50 2.44 2.50 23.00 23.12 24-1.38 27.00 20.20 19.25 20.25 20.00 3.69 6.32 5.50 0.50 20.19 ... 2.88
22 33.00 2.57 2.63 25.25 25.25 24-1.63 29.25 22.22 21.25 22.25 22.00 3.93 6.43 5.75 0.50 22.19 ... 3.13
24 36.00 2.69 2.75 27.25 27.62 24-1.63 32.00 24.25 23.25 24.25 24.00 4.13 6.56 6.00 0.50 24.19 ... 3.25

Dimensions are in inches.

(a)- Bolt hole diameter 1/8 in. larger than bolt diameter. (b)- Standard bore dimensions provided. See bore chart for other wall thicknesses. (c)- This dimension is commonly associated with "true" lap joints. Industry standard is to make to the slip on length through the hub.
